DH300 & DC10

Share:

Description

Click to Watch Product Operation Video

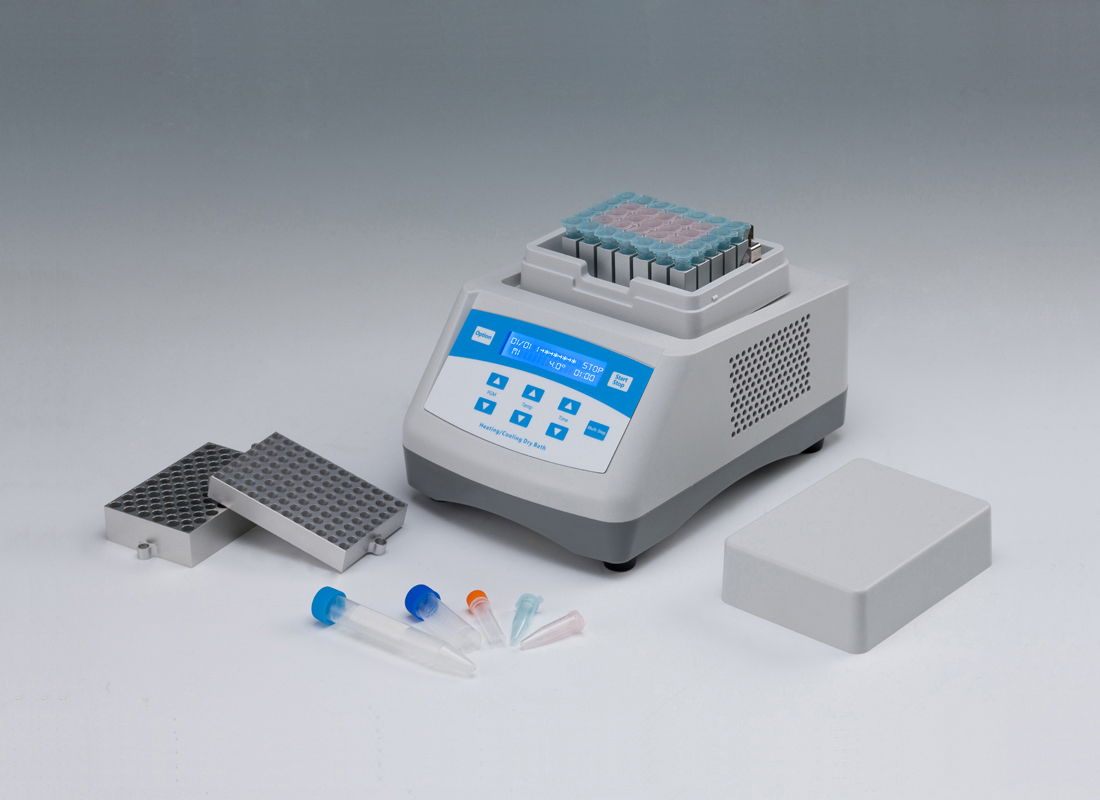

DH300/DC10 is microprocessor controlled Dry Bath Incubator. Instead of traditional water bath device, the heat-conducting medium is high purity alumium. The exact desired temperature is easily set using the arrow keys on the sloped control panel while values are shown on the large digital display. No checking of a thermometer and readjusting temperature is necessary. The user calibration feature allows for easy calibration to in house standards when required.

This product can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis denaturation and serum solidification, etc.



Features:

1. Energy-efficient Peltier design.

2. Automatic fault detection and buzzer alarm function.

3. Electronic calibration. User can reset to any local standard.

4. Small, compact size uses very little bench space.

5. Easy replacement, cleaning and disinfecting of metal blocks.

6. Built-in over-temperature protection.

7. Internal power supply provided is UL, CSA and CE approved.

8. Customed modules are accepted.

9. Buzzer alarm when temperature control ends.





E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectParameters
Product model DH300
DC10
Temp setting range
0℃~100℃
 -10℃~100℃
 Temp control range RT+5℃~100℃
RT- 30℃~100℃
 Time range  1min ~ 99h59min/∞
 Temp accuracy  ≤±0.3℃
 Display accuracy  0.1℃
 Temp uniformity  ≤±0.3℃
Heating time ≤12min(from 25℃ to 100℃)
≤12min(from 25℃ to 100℃)
Cooling time -- --
≤10min(from 100℃ to 25℃)
Cooling time -- -- ≤25min(from RT to RT-30℃)
Storage at 4℃ -- -- Yes
Multi points running  Yes(Max 5 points)
Multi cycle  Yes(Max 99 times)
Auto running Yes
Auto heating  Yes
Auto resume to run  Yes
Capacity  See optional block
 Power  150W
Power input AC110 or AC220V / 50-60HZ AC100~240V, 50/60Hz
Fuse 250V  3A  Ф5×20
Size 260x195x150mm
Weight 2.5Kg 4.5Kg
    Optional ModulesHoles & Diameter Remarks
    MD30 96×0.2ml (PCR plate) 0.2ml PCR plate
    MD31 54×0.5ml (centrifuge tubes) Standard centrifuge tubes
    MD32 35×1.5ml (centrifuge tubes) Standard centrifuge tubes
    MD33 35×2.0ml (centrifuge tubes) Standard centrifuge tubes
    MD34 15×0.5ml+20×1.5ml (centrifuge tubes) Standard centrifuge tubes
    MD35 96×0.2ml (ELISA plate) 96-well ELISA plate
    MD36 24×5ml  (centrifuge tubes) Standard centrifuge tubes
    MD37 15×10ml (centrifuge tubes) Standard centrifuge tubes
    MD38 12×15ml (centrifuge tubes) Standard centrifuge tubes
    MD39  6×50ml (centrifuge tubes) 50ml round-bottom centrifuge tubes
    MD39-S 6×50ml (centrifuge tubes) 50ml conical-bottom centrifuge tubes
    RC02C00011 32*0.2ml+12*0.5ml+15*1.5ml
    Customized Module Provided by customer



















    DH300 Modules
