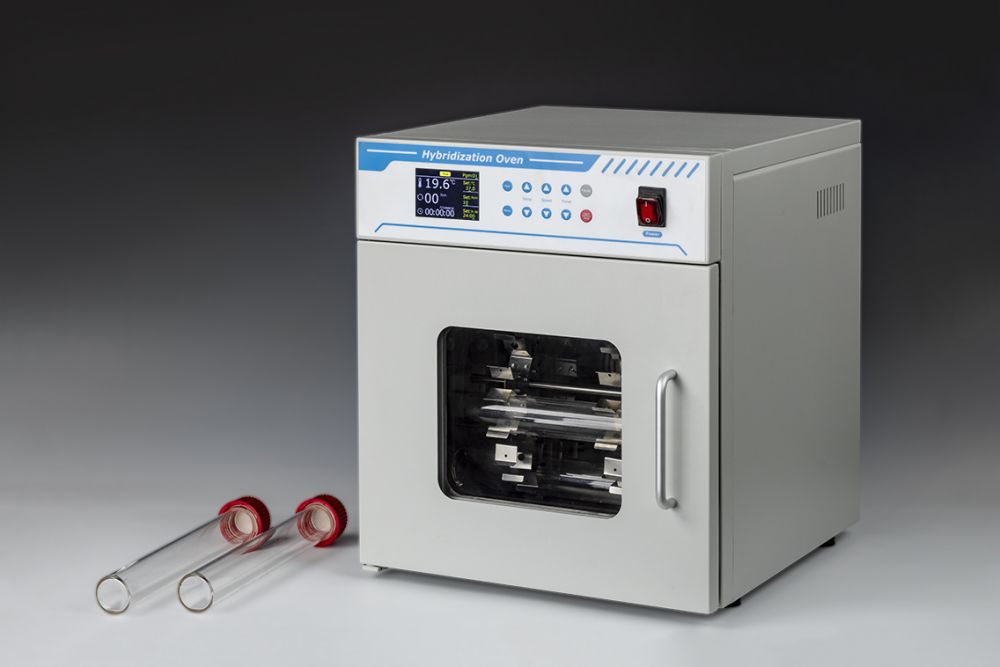

Hybridization Oven HD1000

Share:

Description

The Hybridization Oven is equipped with step motor and PID intelligent temperature control technology. Its PID fuzzy control technology can ensure temperature control accuracy and automatically adjust the heating rate to save waiting time. It is widely used in the screening of cloned genes, the production of enzyme cutting maps, the qualitative and quantitative detection of specific gene sequences in genome, and the diagnosis of diseases. Therefore, it has a wide range of applications not only in the field of molecular biology but also in clinical diagnosis.



Features:

1. Colorful LCD display is more intuitive. It is easy to setup and use.

2. Excellent temperature accuracy and uniformity.

3. Step motor: noiseless, less interference and maintenance-free.

4. It has a glass door for observing samples during processing.

5. Interior surfaces are of stainless steel for high durability and low maintenance.

6. It can hold different kinds of holder and platform.

7. An alarm voice sounds automatically at the end of the run.

8. Built-in temperature calibration function.

9. Built-in over-heating protection device, safe and reliable.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Model HD1000
Temp. control range RT.+5 ℃ ~100 ℃
Time range 1min ~ 99h59min/∞
Temp. accuracy
≤ ± 0.3℃@37℃

Display accuracy

0.1℃
Temp. uniformity(inside oven)  ≤ ± 0.3℃@37℃
Temp. uniformity(inside bottles) ≤ ± 0.1℃@37℃
Speed range 5~30rpm

Max. load

5kg
Program number
99programs
Auto preheating Yes
Auto constant temp. at the end of run Yes
Auto resume to run Yes
Power supply 1000W
Voltage AC100V~240V/50-60Hz
Fuse 250V  5A  Ф5×20
Interior Dimension(mm) 267x326x273mm
Overall Dimension(mm) 428x400x470mm
Weight 25KG

    Name

    Model
    DescriptionRemark

    Hybridization bottle holder

    HD1000-T1

    10pcs 35x300mm bottles or 20pcs 35x150mm bottles

    Standard
    Centrifuge tube holder HD1000-T2

    22tubes of 1.5ml/2.0ml(one plate)

    8tubes of 10ml/15ml(one plate)

    6tubes of 50ml(one plate)
    Optional, holder holds 4 plates

    Rocking platform

    HD1000-T3

    Platform dimension: 270x215mm Optional
