Sample Concentrator ND200 series

Share:

Description

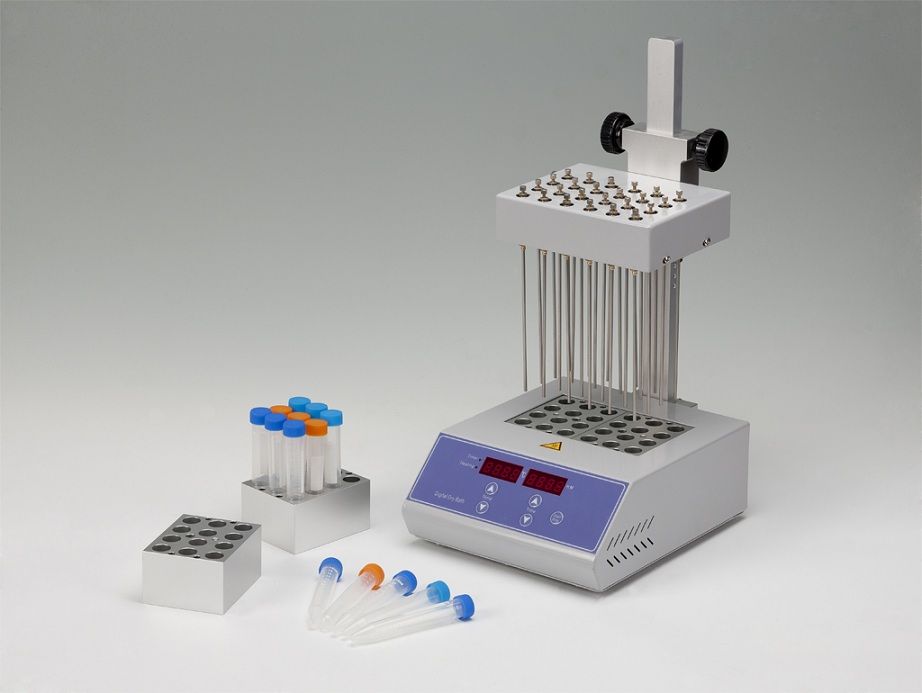

ND200 series Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.



Features:

◆ High precision and wide range of tamp control.
◆ Blowing a large number of samples at one time.
◆ Blowing each sample independently.
◆ Amount of airflow can be adjusted.
◆ Easy operation; safe and reliable to use.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectParameter
Model ND200-1 ND200-2
Temp. control range RT.+5°C -160°C
Temp. accuracy ±0.5℃(@40℃)
Temp. accuracy ±1℃(@120℃)
Temp. uniformity ±0.5℃
Display accuracy 0.1℃
Timing range 1-99h59min/∞
Heating time ≤15min(from 25℃ to 160℃)
Max vertical travel 200mm
Nitrogen flow rate 15L/min
Nitrogen pressure 0.1Mpa
Block quantity 1 2
Power 300W 500W
Voltage AC220V or AC110V, 50/60Hz
Dimension(mm) 260x220x475
Weight 6kg 7.5kg
    ModelTube diameterRemark
    MD50 12x10mm Hole depth 47mm
    MD51 12x12mm Hole depth 47mm
    MD52 12x13mm Hole depth 47mm
    MD53 12x15mm Hole depth 47mm
    MD54 12x16mm Hole depth 47mm
    MD55 12x19mm Hole depth 47mm
    MD56 12x20mm Hole depth 47mm
