DH200

Share:

Description

产品操作视频点击观看

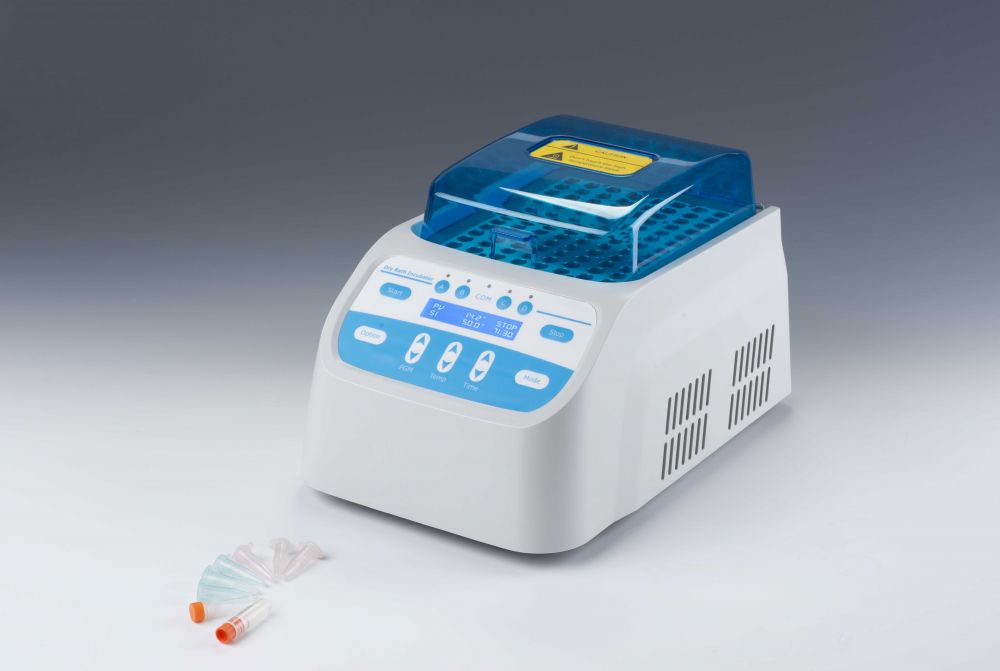

DH200 Dry Bath Incubator is a microprocessor-controlled dry block heating system with highly precise temperature control, making it an alternative to the traditional water bath devices. It is widely used in the sample preservation, reaction of DNA amplification, electrophoresis, degeneration, solidification and other kinds of serum biochemical sample thermostatic incubation process.



Recommended also for LAL test gel clot.



Features:

1. LCD display, simple interface. Easy to set up and use.

2. Blue transparent lid prevents samples splashing out.

3. Accurate temperature control, high stability.

4. With four groups(A/B/C/D), timing independently or simultaneously.

5. Optional blocks are available for common laboratory tubes and plates. Custom blocks are also available upon request.

6. Automatic preheating function.

7. Auto resume to run after power failure.

8. Automatic running function.

9. Built-in temperature calibration function.

10. Built-in over-heating protection device, safe and reliable.



E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectParameters
Temp setting range
0°C~110°C
 Temp control range RT+5°C~110°C
 Time range 1min ~ 99h59min/∞
 Temp accuracy ≤±0.3°C @37°C
 Display accuracy 0.1℃
 Temp uniformity ≤±0.3°C @37°C
Heating time ≤20min(from 25°C to 110°C)
Auto heating
Yes
Auto running
Yes
Auto resume to run
Yes
Timing independently for each group Yes
Block quantity 4
Power
500W
Voltage
 AC110 or 220V / 50-60HZ
Fuse
250V  3A  Ф5×20
Dimension(mm)
370x254x228
Weight(kg)
8.0
    Optional ModulesHole Diameter Number of HolesRemarks
    MD01 6mm 48 Hole depth 47mm
    MD02 7mm 48 Hole depth 47mm
    MD03 10mm 24 Hole depth 47mm
    MD04 12mm 24 Hole depth 47mm
    MD05 13mm 24 Hole depth 47mm
    MD06 15mm 16 Hole depth 47mm
    MD07 16mm 16 Hole depth 47mm
    MD08 19mm 12 Hole depth 47mm
    MD09 20mm 12 Hole depth 47mm
    MD10 26mm 8 Hole depth 47mm
    MD11 28mm 4 Hole depth 47mm
    MD12 40mm 3 Hole depth 47mm
    MD13 0.2ml (centrifuge tubes) 48 Standard centrifuge tubes
    MD14 0.5ml (centrifuge tubes) 48 Standard centrifuge tubes
    MD15 1.5ml (centrifuge tubes) 24 Standard centrifuge tubes
    MD16 2.0ml (centrifuge tubes) 24 Standard centrifuge tubes
    MD17 0.2ml (PCR tubes) 96
    MD18 0.2ml (ELISA plates) 96
    Customized Module Provided by customer
    Note: The modules MD17 and MD18 are twice the size of the standard module, so selecting MD17 or MD18 means that the number of selected modules is 2.
