Thermo Shaker TS100 & TCS10

Share:

Description

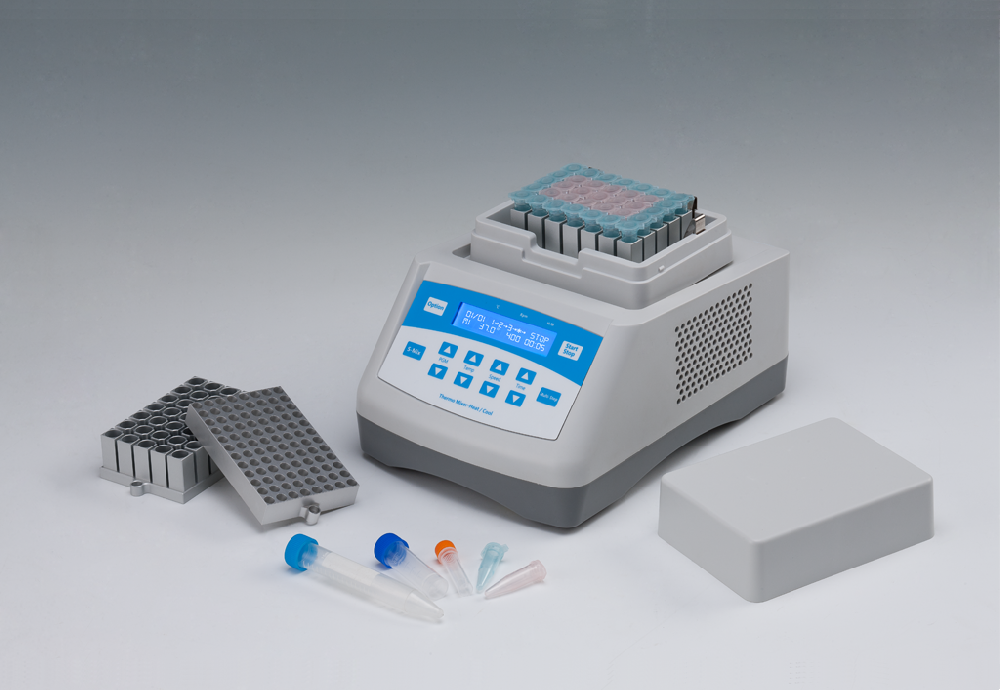

TS100/TCS10 Thermo Shaker is a temperature controlled shaker, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long time, safety and sample integrity.



Features:

1. LCD display. It is easy to setup and use.

2. Reliable design with inner extra temperature protection.

3. Each device is equipped with lifter that is easy to replace different blocks.

4. Digital accuracy and convenience.

5. Precision wells for uniform thermal transfer.

6. Assorted blocks for a wide variety of tube sizes.

7. Brushless DC Motor: noiseless long service life maintenance-free.

8. Conforms to CE safety standard.

9. Accurately control and display time, temperature and speed.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Model  TS100 TCS10
 Temp setting range 0℃~100℃
 Temp control range RT.+5℃~100℃ RT.-20℃~100℃
Time range 1min ~ 99h59min/∞
Temp accuracy ≤±0.3℃
Display accuracy 0.1℃
Temp uniformity ≤±0.3℃
Speed range 200~1800RPM 200~1500RPM
Orbit 3mm
Heating time ≤12min(from 25℃ to 100℃)
Cooling time1 -- ≤10min(from 100℃ to 25℃)
Cooling time2 --
≤15min(from RT. to RT.-20℃)
Multi point running Yes(Max 5points)
Multi cycle

Yes(Max 99times)

Auto heating Yes
Auto running Yes
Auto resume to run Yes
Power supply  150W
Voltage           AC220V/50-60HZ         AC110V~220V/50-60HZ
Fuse 250V  3A  Ф5×20
Dimension(mm) 260x195x150 mm
Weight  7.0Kg  7.5Kg
    Block ModelDescriptionRemark
    MD30 96×0.2ml(0.2ml PCR plate)
    MD31 54×0.5ml(centrfuge tube)
    MD32 35×1.5ml(centrfuge tube)
    MD33 35×2.0ml(centrfuge tube)
    MD34 15×0.5ml+20×1.5ml(centrfuge tube)
    MD35 96×0.2ml(Elisa/Deep-well plate)
    MD36 24×5ml  (centrfuge tube) Max. speed 1000rpm
    MD37 15×10ml (centrfuge tube) Max. speed 1000rpm
    MD38 12×15ml (centrfuge tube) Max. speed 800rpm
    MD39  6×50ml (50ml round centrifuge tube) Max. speed 800rpm
    MD39-S 6×50ml (50ml conical centrfuge tube) Max. speed 800rpm
    RC02C00011 32*0.2ml+12*0.5ml+15*1.5ml
    定制模块 客户提供



















    TS100模块
