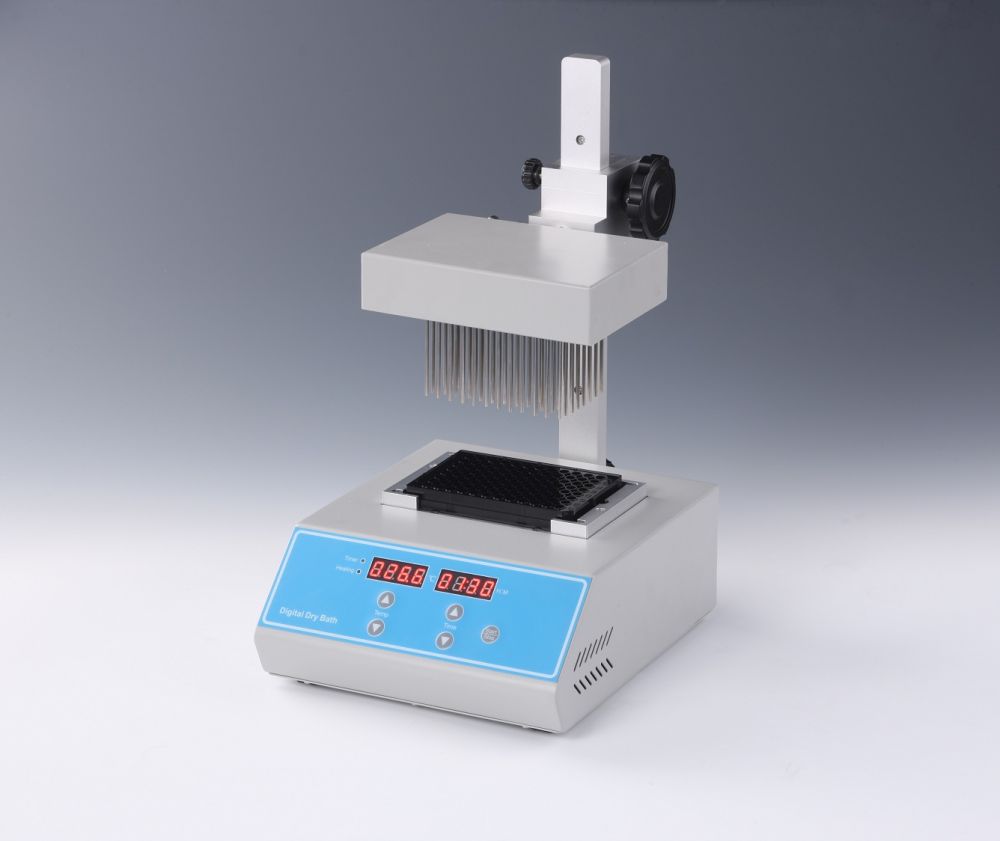

Sample Concentrator(96wells) ND300-1

Share:

Description

Sample concentrator is a high precision temperature control instrument with microprocessor controlled and PID fuzzy controlled technique. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate a large of samples simultaneously.


Features:

◆ High precision and wide range of temp control.
◆ Blowing a large number of samples at one time.
◆ Blowing each sample independently.
◆ Easy operation; safe and reliable to use.

 Application fields

1. Analysis of pesticide residues: vegetables, fruits, cereals, plant tissue.

2. Environmental analysis: such as drinking water, groundwater and polluted water samples.

3. Biological analysis: such as hormone analysis, sample preparation of liquid phase and gas phase and mass spectrometry analysis.

4. Food and beverage: such as milk, wine, beer, etc.

5. Pharmaceutical drug testing: such as traditional Chinese medicine pharmaceutical, drug screening.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectParameter
Model ND300-1
Temp. control range RT.+5°C -160°C
Temp. accuracy ±0.5℃(@40℃)
Temp. accuracy ±1℃(@120℃)
Temp. uniformity
±0.5℃
Display accuracy 0.1℃
Time range 1-99h59min/∞
Heating time ≤15min(25°C to 160°C)
Max vertical travel 150mm
Max gas usage 15L/min
Max gas pressure 0.05Mpa
Block quantity 1
Max power 500W
Voltage 220V or 110V 50/60Hz
Dimension(mm) 220x310x385mm
Weight(kg) 7.5Kg

    Block model

    Description

    Dimension(mm)

    MD17

    0.2ml PCR plate

    153X95.5X60

    MD18

    Elisa plate/Deep-well plate

    153X95.5X60
