DH2000 series(high temperature)

Share:

Description

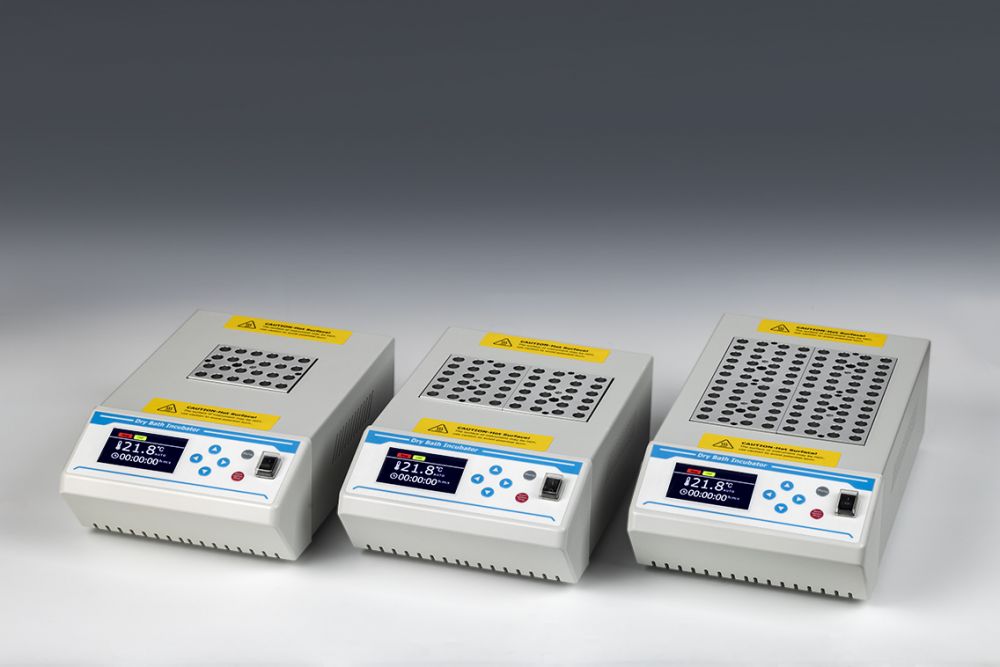

Dry bath incubator is a sample incubation equipment based on film heating and PID automatic temperature control technology. Flexible timing, constant temperature function and unique multi-point operating mode improve the efficiency of the laboratory work, which is the ideal equipment for samples incubation, catalytic reaction process, saving and etc.



Features:

1. Colorful LCD display(320x480 Pixel), easy to set up and use.

2. Accurate temperature control, high stability.

3. Different blocks for choice. Customized blocks are accepted.

4. Temperature calibration function.

5. Three kinds of countdown trigger modes available.

6. External temperature sensor can be connected.

7. Magnetic dust-proof lid can be optionally supplied(for DH2000-1 or DH2000-2).

8. Built-in software and hardware over temperature protection device, will use more reliable.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Model             DH2000-1                               DH2000-2            DH2000-4
Temp. control range RT+5℃ -160℃ RT+5℃ -130℃
 Temp. accuracy  ≤±0.1℃(@37℃)  ≤±0.1℃(@37℃)  ≤±0.2℃(@37℃)
Temp. accuracy
 ±1℃(@120℃)
Temp. uniformity  ±0.1℃
±0.1℃ ±0.2℃
Display accuracy 0.1℃
Time range 1-99h59min/∞
Heating time(AUTO) ≤25min(25℃~160℃) ≤20 min(25℃~130℃)
Heating rate 1℃/min、3℃/min、5℃/min、AUTO
Block quanity 1 2 4
Program number 99programs
Multi points running Yes(Max 5 points)
Multi cycle Yes(Max 99 times)
Auto preheating Yes
Auto running Yes
Auto resume to run Yes
External temperature sensor interface  1port interface
 Power 200W  400W  600W
 Voltage  AC220V or AC110V/50-60Hz
Dimension 205x320x110 mm 205×385×110 mm
Weight 4.8kg  6.1kg 8.8kg
    Block modelTube diameter Hole quantityRemark
    MD01 6mm 48 Hole depth 47mm
    MD02 7mm 48 Hole depth 47mm
    MD03 10mm 24 Hole depth 47mm
    MD04 12mm 24 Hole depth 47mm
    MD05 13mm 24 Hole depth 47mm
    MD06 15mm 16 Hole depth 47mm
    MD07 16mm 16 Hole depth 47mm
    MD08 19mm 12 Hole depth 47mm
    MD09 20mm 12 Hole depth 47mm
    MD10 26mm 8 Hole depth 47mm
    MD11 28mm 4 Hole depth 47mm
    MD12 40mm 3 Hole depth 47mm
    MD13 0.2ml(centrifuge tube) 48 Standard centrifuge tube
    MD14 0.5ml(centrifuge tube) 48 Standard centrifuge tube
    MD15 1.5ml(centrifuge tube) 24 Standard centrifuge tube
    MD16 2.0ml(centrifuge tube) 24 Standard centrifuge tube
    MD17 0.2ml(PCR tube) 96 Not suitable for DH2000-1
    MD18 0.2ml(Elisa/Deep-well plate) 96 Not suitable for DH2000-1
    RC02100W01 External temperature sensor 1 Optional
    RC02100L01
    1 Optional(Not suitable for DH2000-4)
    Note: MD17 and MD18 is special for DH2000-2/DH2000-4





























    MD01到MD18模块
