Mini50

Share:

Description

Click to Watch Product Operation Video

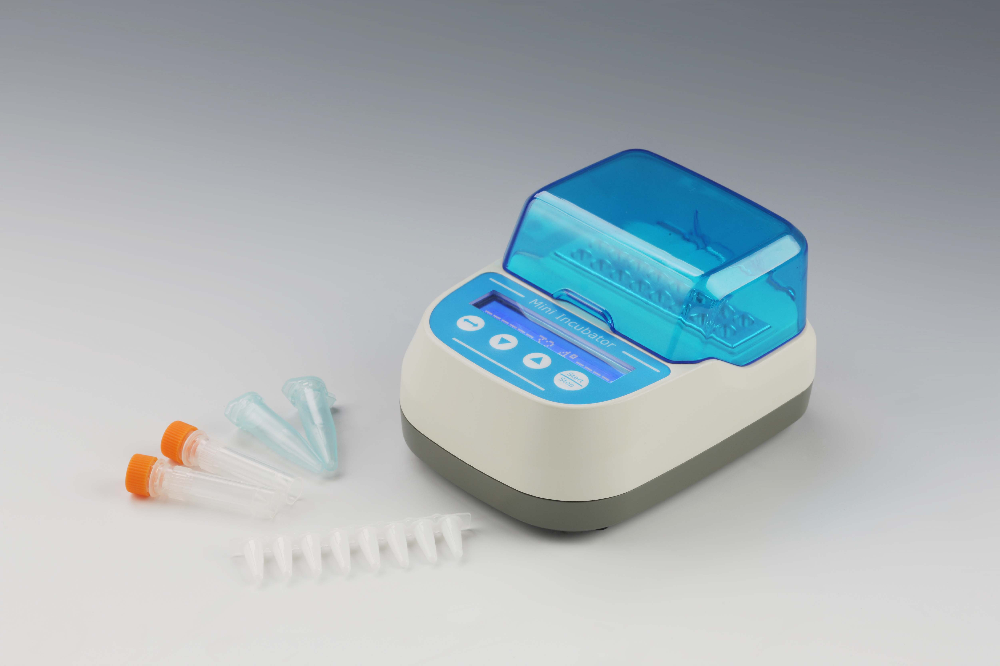

Mini50 is a microprocessor-controlled product. It is widely used in preservation and reactions of sample, DNA amplification and initial denaturation of electrophoresis and so forth. It fits almost anywhere and can even be used in cars, boats or wherever a 12 volt power source is available.



Features:

1. Energy-efficient design.

2. Applicable to 12V power adapter.

3. High temperature control precision

4. Process of experiment is visible.

5. Automatic running function.

6. Automatic power recovery function.

7. Electronic calibration. User can reset to any local standard.

8. Custom blocks are accepted to fit different experiment request.

9. Built-in software and hardware over-temperature protection device, use more reliable.

E-mail : sales@ruiwell.com / info@ruiwell.com

ItemParameter
Model Mini50
Temperature Control Range Ambient +5℃~100℃

Time Setting Range

1~999h/1~999min/1~999sec/∞
Control Accuracy ≤±0.5℃@37℃
Display Resolution 0.1℃
Temperature Uniformity  ≤±0.5℃@37℃
Heating Rate ≤15min (from 37℃ to 100℃)
Auto-start on power-on Supported
Auto-resume after power-off        Supported
Input Power 24W
Voltage DC12V/2A
Dimensions 135x100x75mm
Weight  0.4kg
    Optional blocks Sample Capacity

    MD8501

    16×0.2ml (PCR tubes)
    MD8502 7×0.5ml (centrifuge tubes)
    MD8503 5×1.5ml (centrifuge tubes)
    MD8504 5×2.0ml (centrifuge tubes)
    MD8505 5×9.3mm
    MD8506 16×0.2ml (ELISA strips)
    Note The module of this device cannot be removed or replaced!
