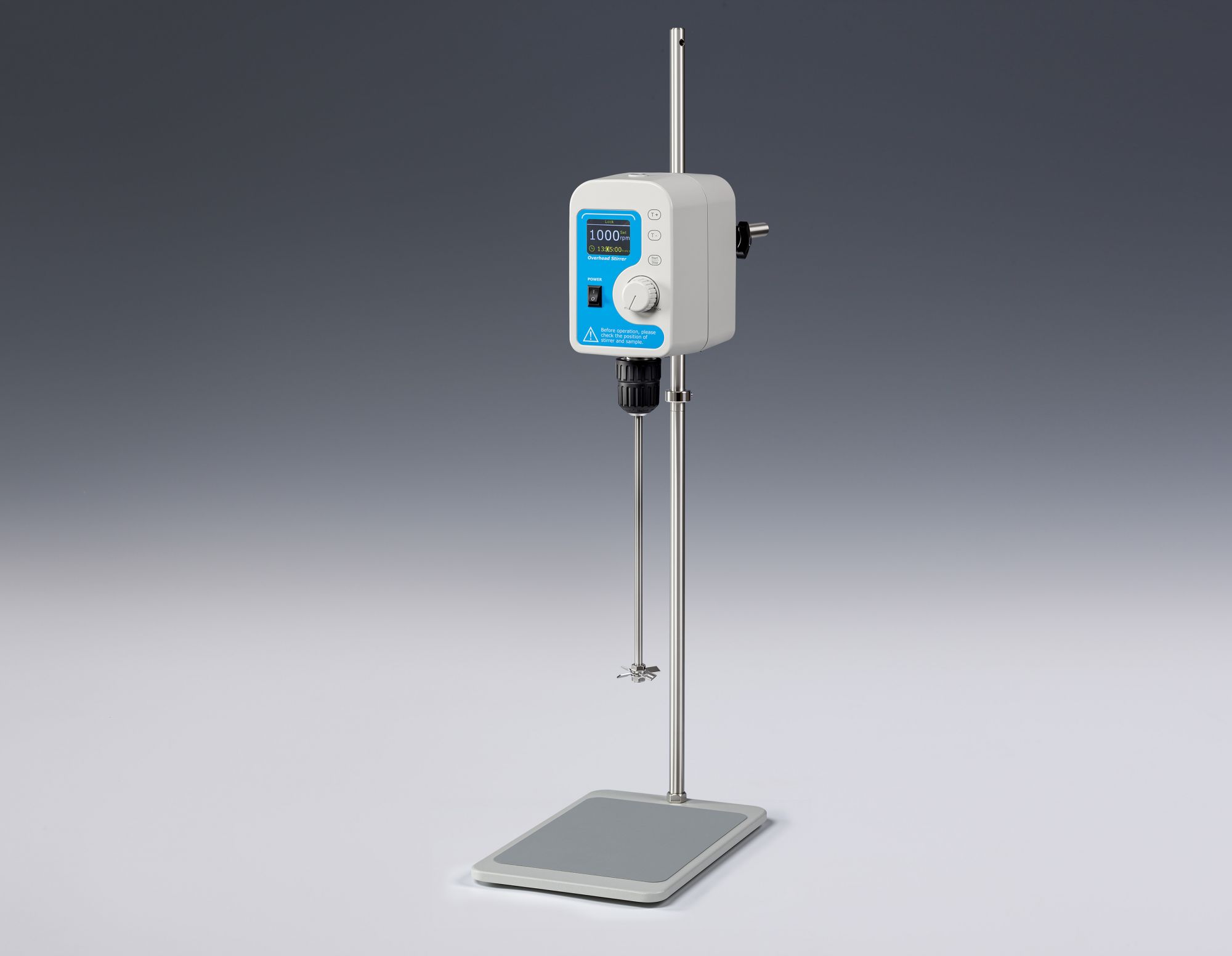

Overhead Stirrer VS series

Share:

Description

Overhead stirrer features stepless speed control and a DC brushless motor, with digital display of operating speed. It is characterized by constant speed and automatic torque adjustment. Its automatic overload and abnormal condition protection to ensure efficient and safe experiments. It is suitable for mixing low to high viscosity liquids or solid-liquid mixtures, and isdely used in chemical synthesis, pharmaceuticals, physicochemical analysis, and other fields.



Features:

1. Colorful LCD(320x240 Pixel) displays speed, time and status.

2. Stirring paddle“through-shaft”design, easy to adjust impeller position and  replace the container.

3. Multiple protection: automatically shut down and alarm in the event of overload, short circuit, over-temperature, abnormal speed, etc.

4. Brushless DC motor, low noise, small interference, free maintenance.

5. Self-locking drill chuck, tools free.

6. Set speed can be maintained when viscosity of liquid changes.

7. Directly connect to computer via USB interface for remote control and speed recording.

E-mail : sales@ruiwell.com / info@ruiwell.com

Projects                                                                             Parameters
Model

VS20

VS40

VS70

Speed range

30~2500rpm

30~2500rpm

30~1600rpm

Speed control accuracy ±1rpm ±1rpm ±1rpm

Timing range

0~ 99h59min

0~ 99h59min

0~ 99h59min

Max. torque

40N.cm

60N.cm

100N.cm

Max. stirring volume(H2O)

20L

40L

70L

Max. viscosity

10000mPa.s

50000mPa.s

100000mPa.s

Chuck clamp diameter range

0.5~10mm 0.5~10mm 0.5~10mm

Communication interface

USB(1 port)

USB(1 port)

USB(1 port)

Overload protection

Yes

Yes

Yes

Power

120W

180W

180W

Voltage

DC24V

DC24V

DC24V

Dimension(mm)

200x827x481

200x827x481

200x827x481
Weight(kg)

8.3

8.4

8.6
    ModelName

    Dimension

    (mm×mm)

    Max. Speed

    (rpm)

    RemarkPicture
    RC02107001 Propeller stirrer
     400×50 2500  Standard stirring, applications at medium and high speed.
    RC02107002 Straight stirrer
    400×60 2500 For low viscosity media at medium and high speeds
    RC02107003 Paddle stirrer
    400×68 1200 For gentle mixing at low and medium speeds
    RC02107004 Centrifugal stirrer
    600×90
    2500 Blades open while speeding. For narrow neck vessels at medium to high speed.
    RC02107005 Grand propeller stirrer
    600×100 2500 Standard stirring
    RC02107006 Grand paddle stirrer 600×100 500 Gentle mixing for those stratify easily or sensitive to shear
    RC02107007 Grand anchor stirrer 600×100 500 Standard stirring for those easily precipitate
    RC0210700 Grand dissolving stirrer 600×100 2500 Breaking down granules in the mixture with strong shear
    RC02107009 Flat-blade stirrer 400×60 2500 Suitable for medium speed stirring, low viscosity and medium viscosity materials
    RC02107010 Anchor stirrer 400×60 1200 Suitable for low speed stirring, medium viscosity and high viscosity materials
