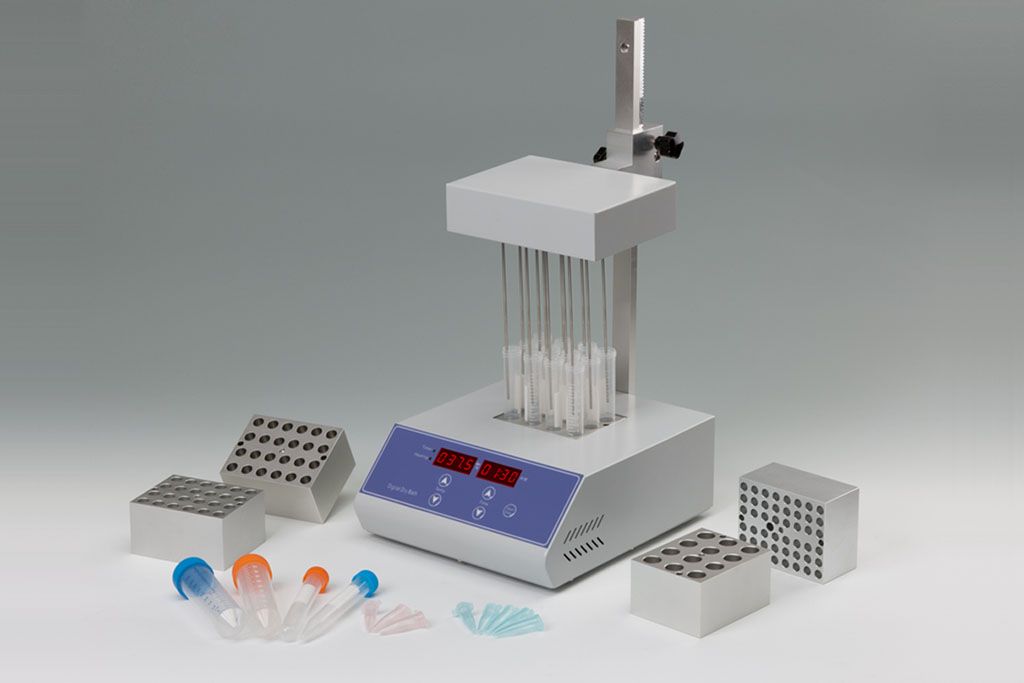

Sample Concentrator ND100 series

Share:

Description

ND100 series sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, and blowing a large number of samples at one time.

It can used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.



Features:

1. High precision and wide range of temp control.

2. Blowing a large number of samples at a time.

3. Blowing each sample independently.

4. Amount of airflow can be adjusted.

5. Easy operation; safe and reliable to use.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectParameter
Model ND100-1 ND100-2
Temp. control range RT.+5°C -160°C
Temp. accuracy ±0.5℃(@40℃)
Temp. accuracy ±1℃(@120℃)
Temp. uniformity ±0.5℃
Display accuracy 0.1℃
Timing range 1-99h59min/∞
Heating time ≤15min(from 25℃ to 160℃)
Max vertical travel 200mm
Nitrogen flow rate 15L/min
Nitrogen pressure

0.05Mpa(Gas needle>16pcs)

Nitrogen pressure 0.05Mpa(Gas needle>16pcs)
Block quantity 1 2
Power 300W 500W
Voltage AC220V or AC110V, 50/60Hz
Dimension(mm) 260x220x450mm
Weight 7kg 7.5kg
    ModelTube diameter Hole quantityRemark
    MD03 10mm 24 Hole depth 47mm
    MD04 12mm 24 Hole depth 47mm
    MD05 13mm 24 Hole depth 47mm
    MD06 15mm 16 Hole depth 47mm
    MD07 16mm 16 Hole depth 47mm
    MD08 19mm 12 Hole depth 47mm
    MD09 20mm 12 Hole depth 47mm
    MD10 26mm 8 Hole depth 47mm
    MD11 28mm 4 Hole depth 47mm
    MD12 40mm 3 Hole depth 47mm
    MD15 1.5ml(centrifuge tube) 24 Standard centrifuge tube
    MD16 2.0ml(centrifuge tube) 24 Standard centrifuge tube
