Multi-tube Vortexer MS400

Share:

Description

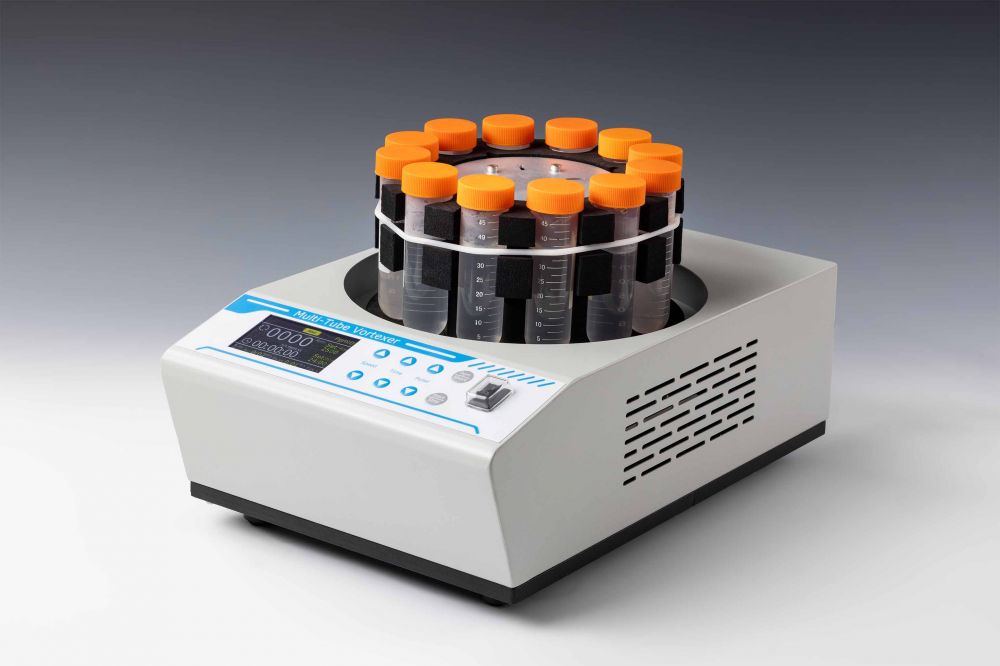

Multi-tube Vortexer is with technique of brushless DC motor and microprocessor controlled technique. It can maximum process 26 samples at once. It is suitable for different volume tubes and multi tube vortex, which mainly apply to the pretreatment of detections such as pesticide residues, veterinary drug residues, additives, mycotoxins, and environment.



Features:

1. Colorful LCD displays time and shaking speed.

2. 1min~99h59min time range, automatic warning sound when finish working.

3. Pulsing program for interval mixing.

4. Brushless DC motor: precise shaking speed, long service life maintenance-free.

5. Process up to 26 samples at a time to make the experiment more convenient and efficient.

6. Humanized program design, built-in timing/continuing/pulse/short mix operation modes.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Model MS400
Speed range
500~3000rpm
Orbit
3mm
Time setting range 1min ~ 99h59min/∞

Pulse function

Yes



Timing set for pulse

2s ~ 9min59s



Interval timing between pulse

1s ~ 9min59s



Times for pulse

1~99times



Pulse mode setting during running

Yes



Short mix

Yes



Max load

4.5kg



Power supply

150W



Voltage AC100V~240V/50-60Hz

Dimension(mm)

380x250x210mm



Weight

14.3kg



    Tube rack model

    Tube diameter Tube max. length

    MS400-T16

    ¢10~¢16mm

    160mm

    MS400-T32

    ¢16~¢32mm

    120mm
