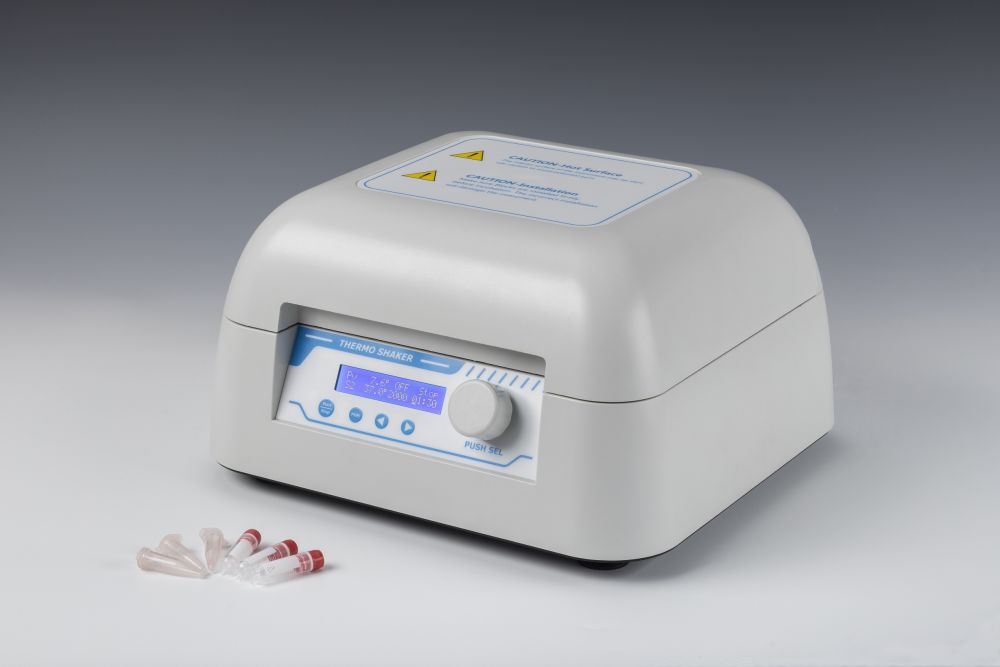

Thermo Shaker(with heating lid) TPS2000

Share:

Description

TPS2000 Thermo Shaker (with heating lid) is a multipurpose thermostatic shaker controlled by brushless DC motor. Its PID intelligent temperature control technology ensures the temperature accuracy, automatically adjusts the heating rate and reduces waiting time. Heating lid temperature control function can effectively prevent the phenomenon of evaporation and tube burst, and greatly improve the temperature uniformity in the test tube. It is the ideal automation tool for sample incubation, catalysis, blending and preservation.



Features:

1. LCD display. It is easy to setup and use.

2. Accurate temperature control, high stability.

3. Dual-blocks with large capacity.

4. Max. speed to 2000rpm.

5. Two options for heating lid temperature control: automatic or manual.

6. Brushless DC motor: noiseless long service life maintenance-free.

7. Support multi points running function.

8. Automatic preheating function.

9. Auto resume to run after power failure.

10. Automatic running function.

11. Built-in temperature calibration function.

12. Built-in over-heating protection device, safe and reliable.

E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Temp. control range RT.+5℃~100℃
Time range 1min~99h59min/∞

Temp. accuracy

≤± 0.2℃@37℃

Display accuracy

0.1℃

Temp. uniformity

≤± 0.2℃@37℃
Heating lid temp. setting range Auto/0~+15℃
Heating lid temp. control mode Automatic / Manual
Speed range 200~2000rpm

Orbit

2mm

Heating time

≤15min(from 25°C to 100°C)

Multi point running

Yes(Max 5points)

Multi cycle

Yes(Max 5points)

Auto constant temp. at the end of run

Yes

Auto preheating

Yes

Auto running

Yes

Auto resume to run

Yes

Block quantity

2

Power supply

450W

Voltage

AC220V/50-60Hz

Fuse

250V  3A  Ф 5×20

Dimension(mm)

340x320x200mm

Weight(kg)

10.7kg

    可选模块孔数及孔径 Max Speed
    MD30 96x0.2ml PCR Plate 2000rpm
    MD31 54x0.5ml centrifuge tube 2000rpm
    MD32 35×1.5ml centrifuge tube 2000rpm
    MD33 35×2.0ml centrifuge tube  2000rpm
    MD34 15×0.5ml+20×1.5ml centrifuge tube 2000rpm
