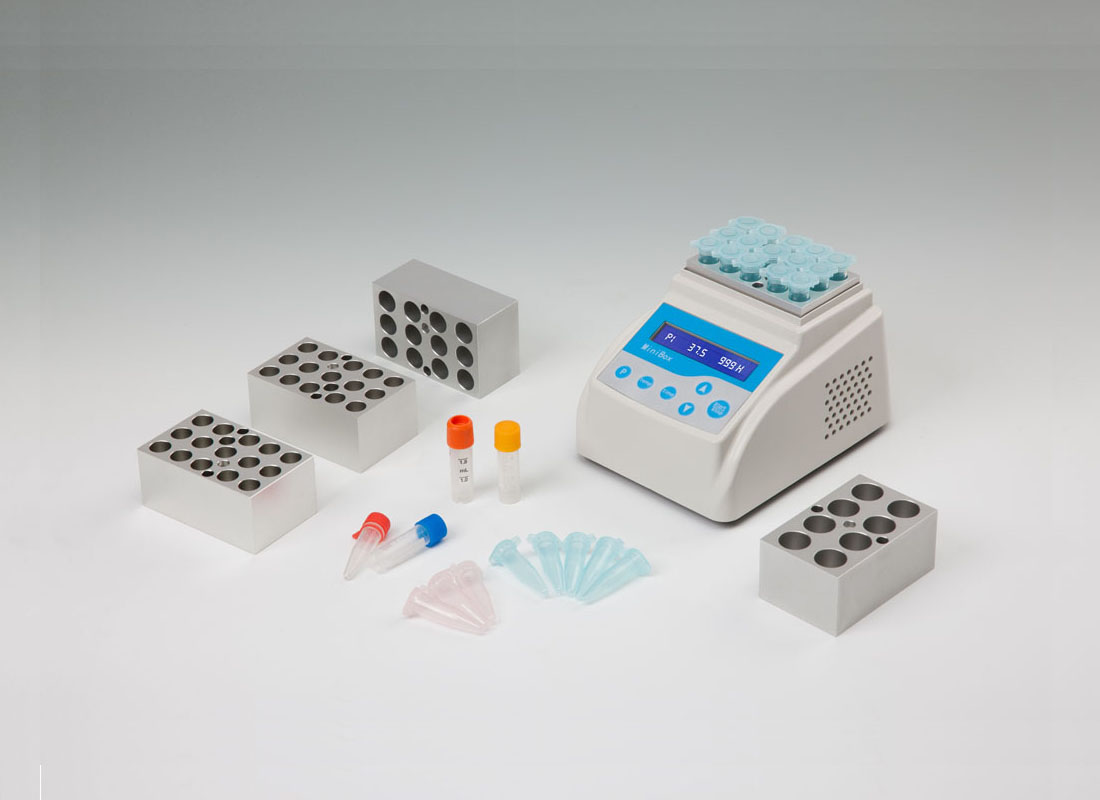

MiniBox & MiniBox-C

Share:

Description

MiniBox/MiniBox-C is a microprocessor-controlled product. It is widely used in preservation and reactions of sample, DNA amplification and initial denaturation of electrophoresis and so forth. It fits almost anywhere and can even be used in cars, boats or wherever a 24/12 volt power source is available.



Features:

1. Energy-efficient design.

2. Applicable to 24V/12V power adapter.

3. Accurate to ± 0.3℃.

4. Process of experiment is visible.

5. Electronic calibration. User can reset to any local standard.

6. Power supply provided is UL, CSA and CE approved.

7. Custom blocks made to fit any sample holder.



E-mail : sales@ruiwell.com / info@ruiwell.com

ProjectsParameters
Model MiniBox MiniBox-C
Temp. control range RT.+5℃~100℃ RT.-15℃~100℃
 Temp. accuracy ≤±0.3℃
Timing range
1sec~99h59min/∞
Temp. uniformity ≤±0.3℃
Display accuracy 0.1℃
Heating time ≤20min(从40℃~100℃) ≤20min(from 25℃ to 100℃)
Cooling time 1 -- ≤20min(from 100℃ to 25℃)
Cooling time 2 --
≤25min(from RT. to RT.-15℃)
AUTO-4℃ -- Yes
Multi points running -- Yes(Max. 5points)
Multi cycle -- Yes(Max. 99times)
Auto heating -- Yes
Auto running Yes
Auto resume to run Yes
 Dimension(mm) 145×113×110mm 145×113×140mm
Max. power 40W 60W
 Voltage AC100~240V / 50~60Hz
 Weight 0.5kg
1kg
    Block ModelDescription
    MiniBoxA 15×2.0ml(centrifuge tube)
    MiniBoxB 15×1.5ml(centrifuge tube)
    MiniBoxC 24×0.5ml(centrifuge tube)
    MiniBoxD 32×0.2ml (for 0.2ml PCR 8-tube strip)
    MiniBoxF 32×0.2ml (for 0.2ml Elisa 8-well strip)













    MiniBox模块

Mini Dry Bath MiniBox(PDF file)
Mini Dry Bath MiniBox-C(PDF file)
Mini Dry Bath MiniBox/MiniBox-C(Word file)
